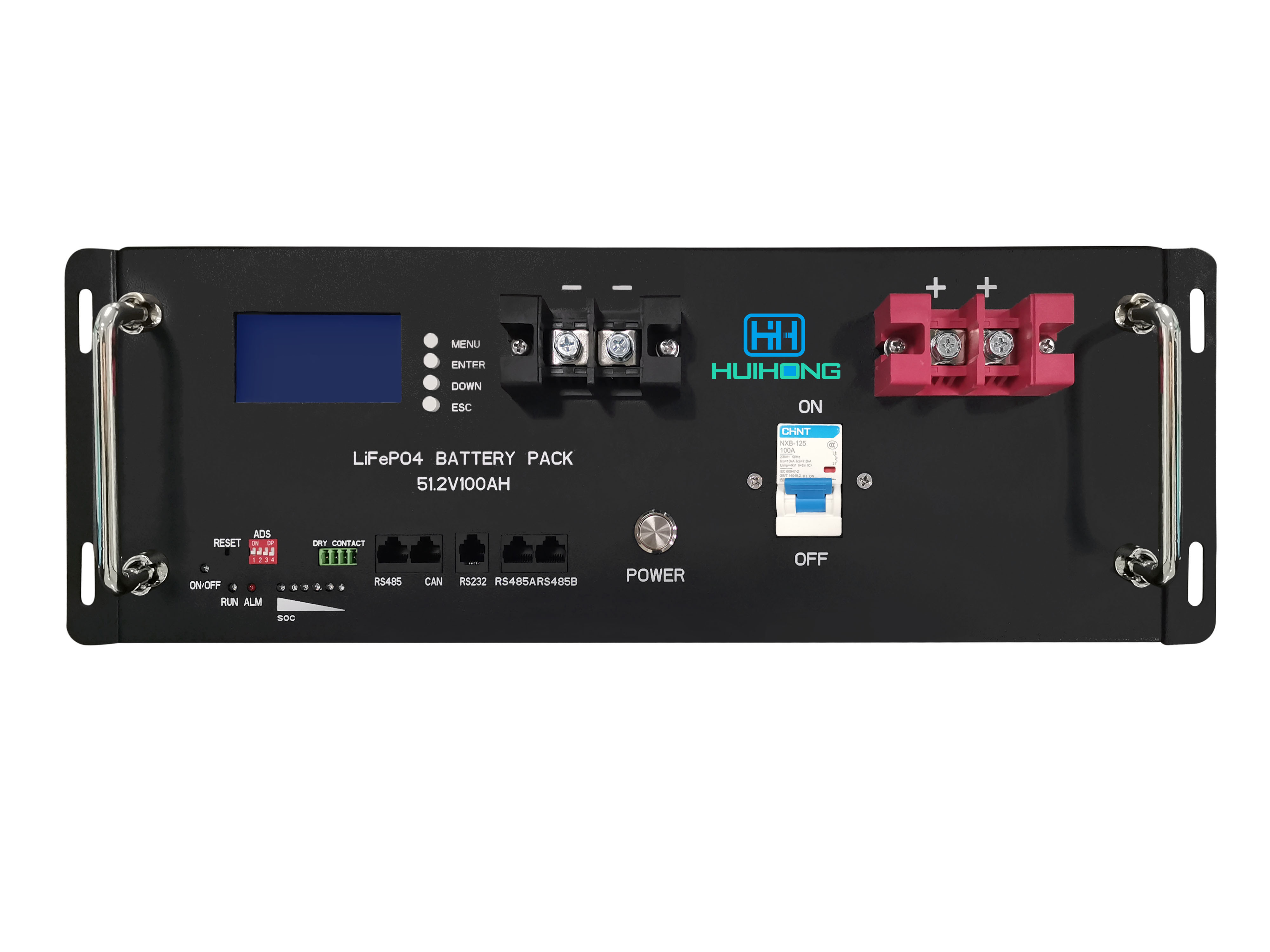

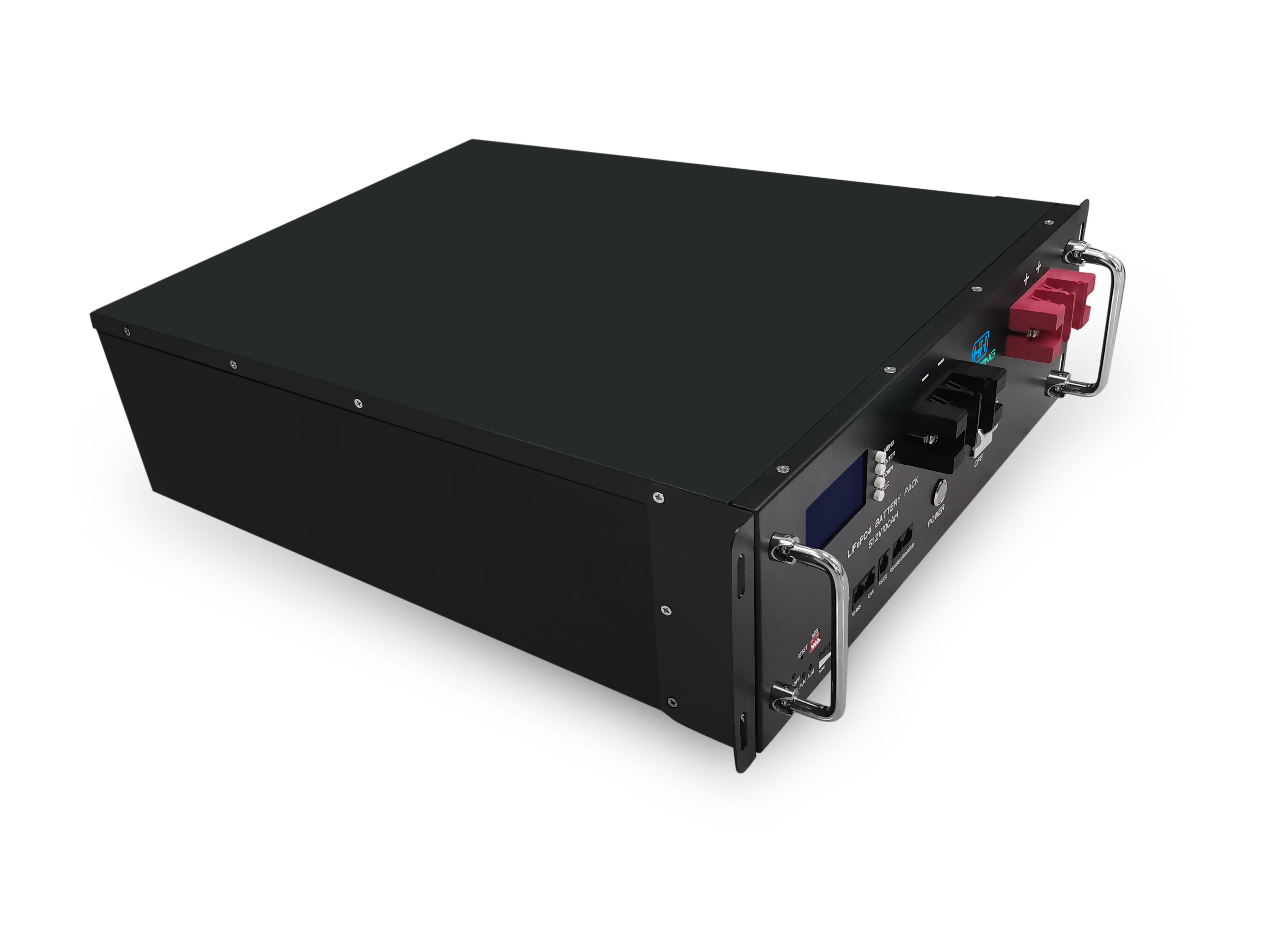

Cabinet-mounted home energy storage battery


Applications

The battery system mainly provides power storage for the solar system of family homes, shops, and offices, and the battery system can optimize the use of electricity and ensure the efficient operation of the entire energy storage system.

Features


★The system uses high-quality lithium iron phosphate power cells, which brings better product performance and reliability
★Each battery module unit is equipped with an independent high-performance BMS system for scientific management of the battery cells
★The battery module units can be connected in parallel for expansion
★Support a variety of inverter communication matching
★The battery energy storage module adopts a standard rack-mounted design for easy installation
★It is widely used in a variety of application scenarios such as homes, shops, and offices

  • <
  • >

Chassis series
Type 4U Chassis / Specifications
Battery Model 25.6V-100AH 48V-100AH 51.2V-100AH
Nominal voltage 25.6V 48V 51.2V
Nominal Capacity 100AH 100AH 100AH
Energy 2.56KWH 4.8KWH 5.12KWH
Charge Cut-off Voltage 29.2V 54.8V 58.4V
Discharge Cut-off Voltage 20.8V 39V 41.6V
Charge current 100A
Discharge current 100A
Communication Interface RS485 RS485+CAN+RS232
Communication protocol Compatible with many mainstream inverter protocols on the market
Dimension(L*W*H) 460*435*160mm 490*482*177mm 482*560*160mm
Charging operating temperature 0℃~45℃
Discharging operating temperature -20℃~55℃
Storage temperature -10℃~45℃ Charge and discharge every  other month
Net Weight 28KG 43KG 46KG
