Product Center

Wall-mounted home energy storage series



Applications

The battery system mainly provides power storage for the family home solar system, and the battery system can optimize the use of electricity and ensure the effective operation of the whole home energy storage system. Its comprehensive LCD information display and easy-to-operate buttons facilitate the user's ability to manage the battery system

Features

★The system uses high-quality lithium iron iodate power cells, which brings better product performance and availability
★Each battery module unit is equipped with an independent high-performance BMMS system for scientific management of the battery cells
★The LCD screen displays various battery statuses
★The battery module units can be connected in parallel for expansion
★Support a variety of inverter communication matching
★The battery module is designed to be wall-mounted, which is easy to install
★It is widely used in a variety of application scenarios such as homes, shops, and offices

  • <
  • >

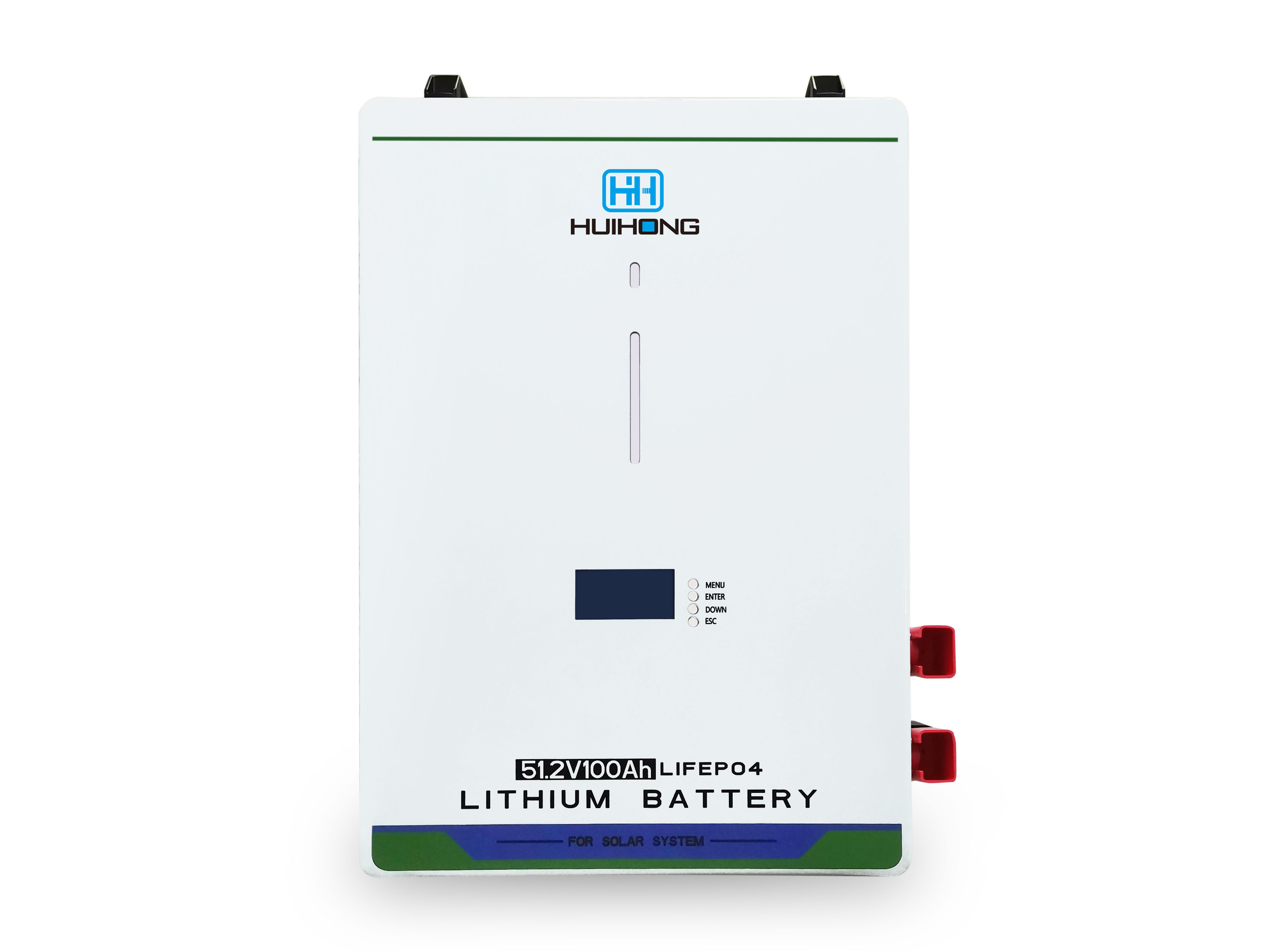

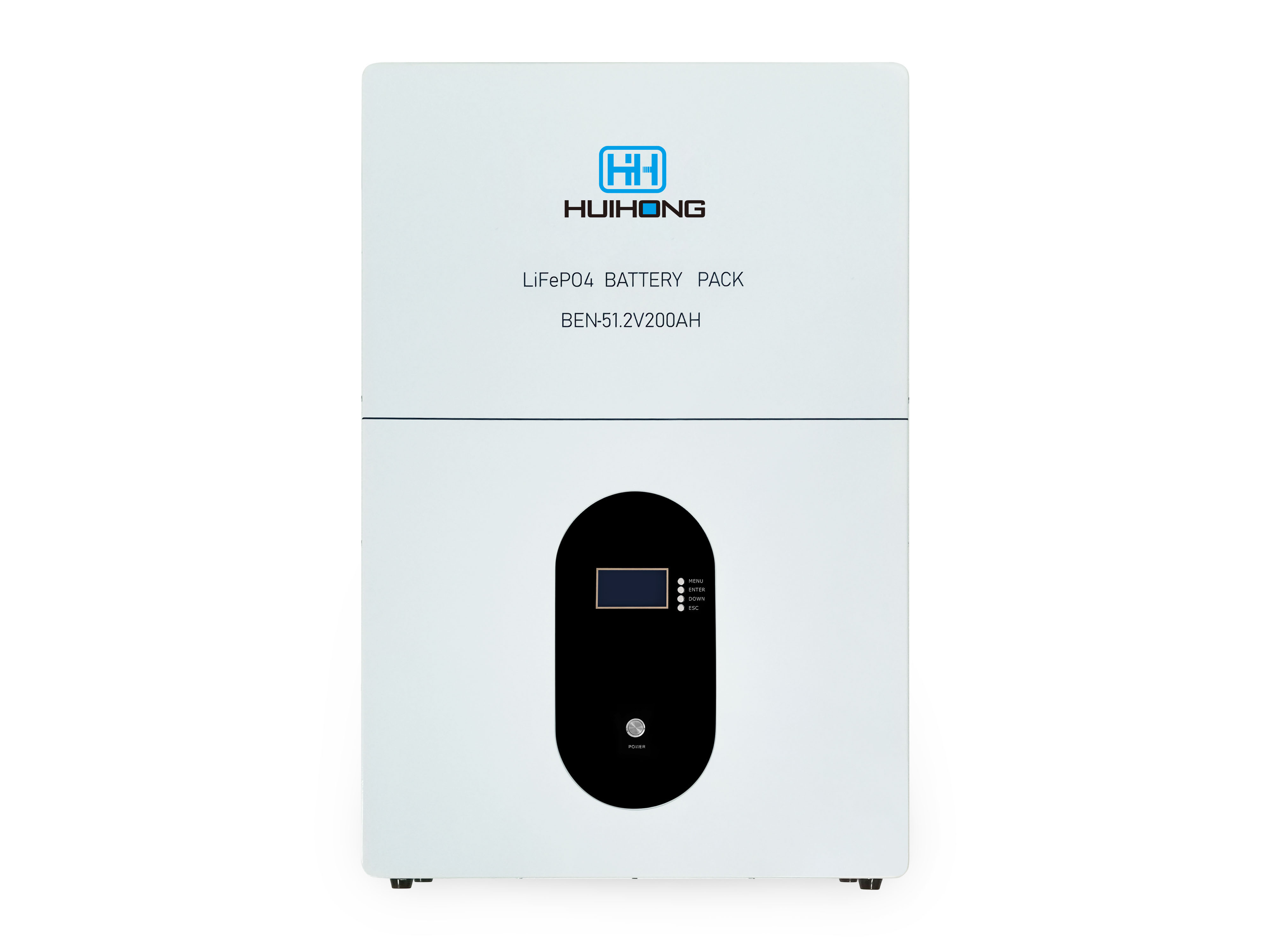

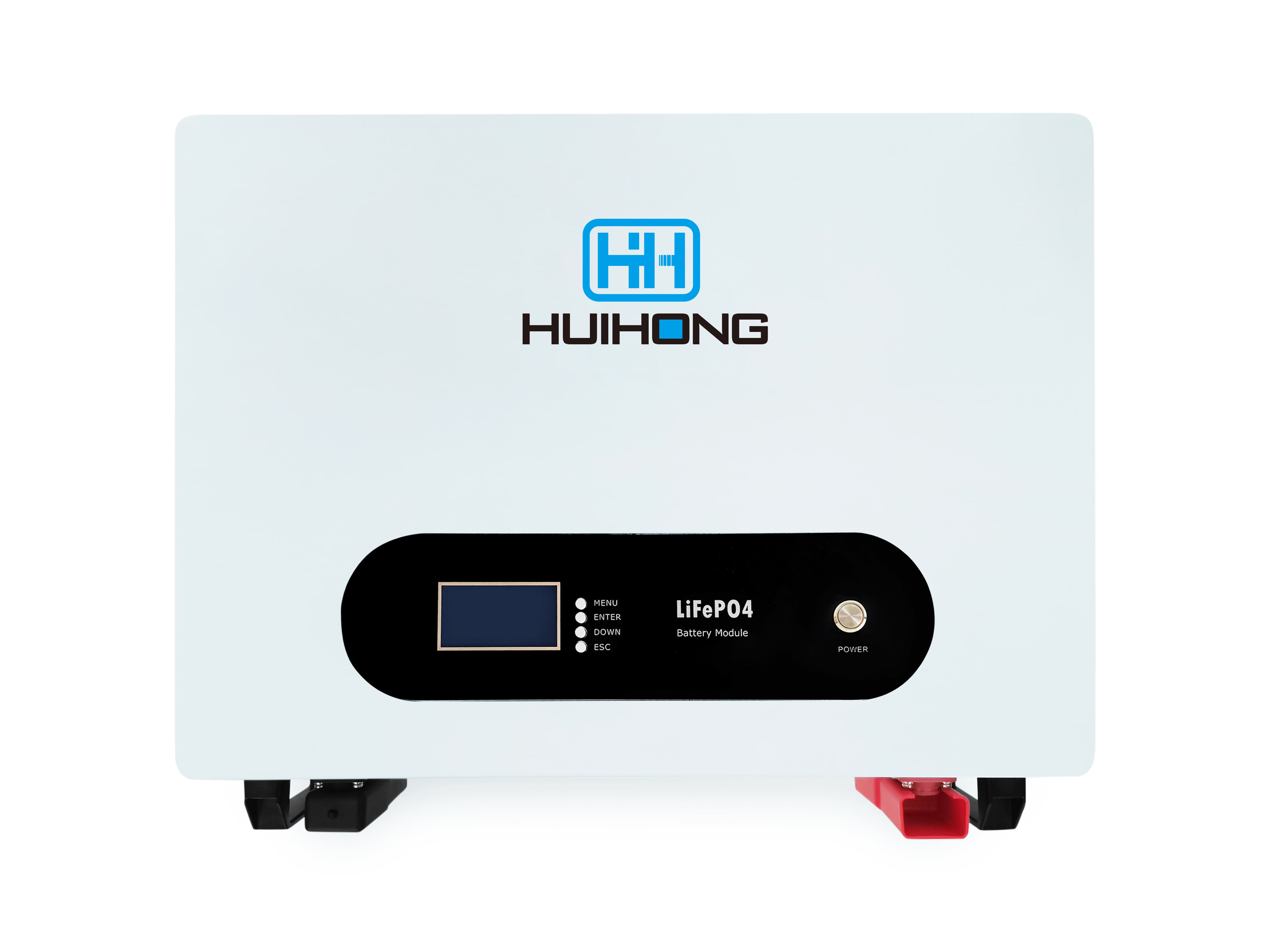

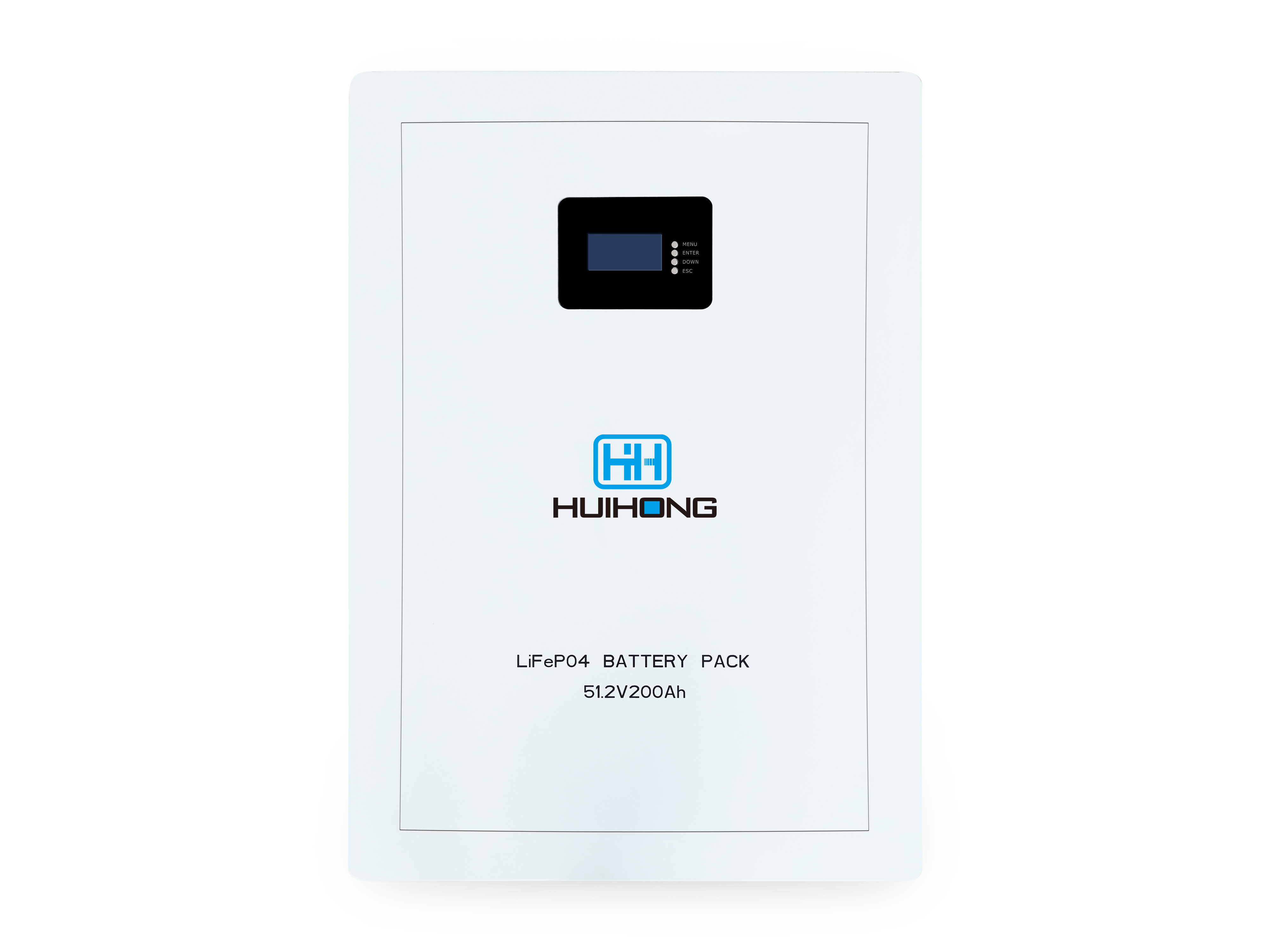

Wall-mounted home energy storage series
Type Lithium Iron Phosphate/Specification Parameters
Battery Model 25.6V-80AH 48V-80AH 51.2V-80AH 25.6V-100AH 48V-100AH 51.2V-100AH 25.6V-200AH 48V-200AH 51.2V-200AH
Nominal voltage 25.6V 48V 51.2V 25.6V 48V 51.2V 25.6V 48V 51.2V
Nominal Capacity 80AH 80AH 80AH 100AH 100AH 100AH 200AH 200AH 200AH
Energy 2.1KWH 3.84KWH 4.1KWH 2.56KWH 4.8KWH 5.12KWH 5.12KWH 9.6KWH  10.24KWH
Charge Cut-off Voltage 29.2V
 		54.8V 58.4V 29.2V 54.8V 58.4V 29.2V 54.8V 58.4V
Discharge Cut-off Voltage 20.8V
 		39V 41.6V 20.8V 39V 41.6V 20.8V 39V 41.6V
Charge current 40A
 		40A 40A 100A 100A 100A 200A 200A 200A
Discharge current 80A
 		80A 80A 100A 100A 100A 200A 200A 200A
Communication Interface RS485 RS485+CAN+RS232 RS485 RS485+CAN+RS232 RS485 RS485+CAN+RS232
Communication protocol Compatible with many mainstream inverter protocols on the market
Dimension（L*W*H) 510*310*166mm 540*426*162mm 540*310*162mm 540*510*162mm 540*485*160mm 800*540*180mm
Charging operating temperature 0℃～45℃
Discharging operating temperature -20℃～55℃
Storage temperature -10℃～45℃ （Charge and discharge every other month）
Net Weight 26KG
 		42KG 44KG 29KG 49KG 51KG 46KG 87KG 92KG
