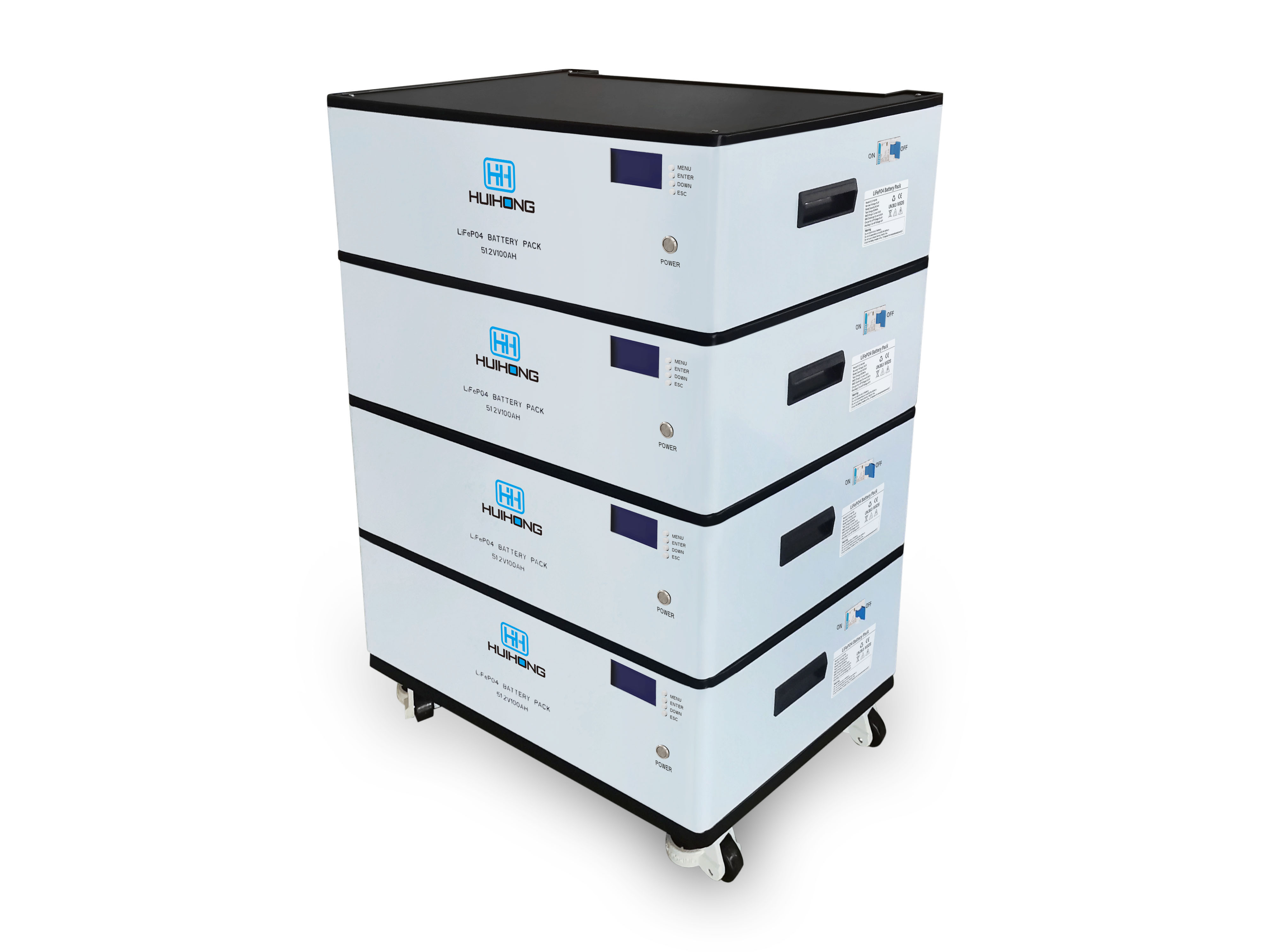

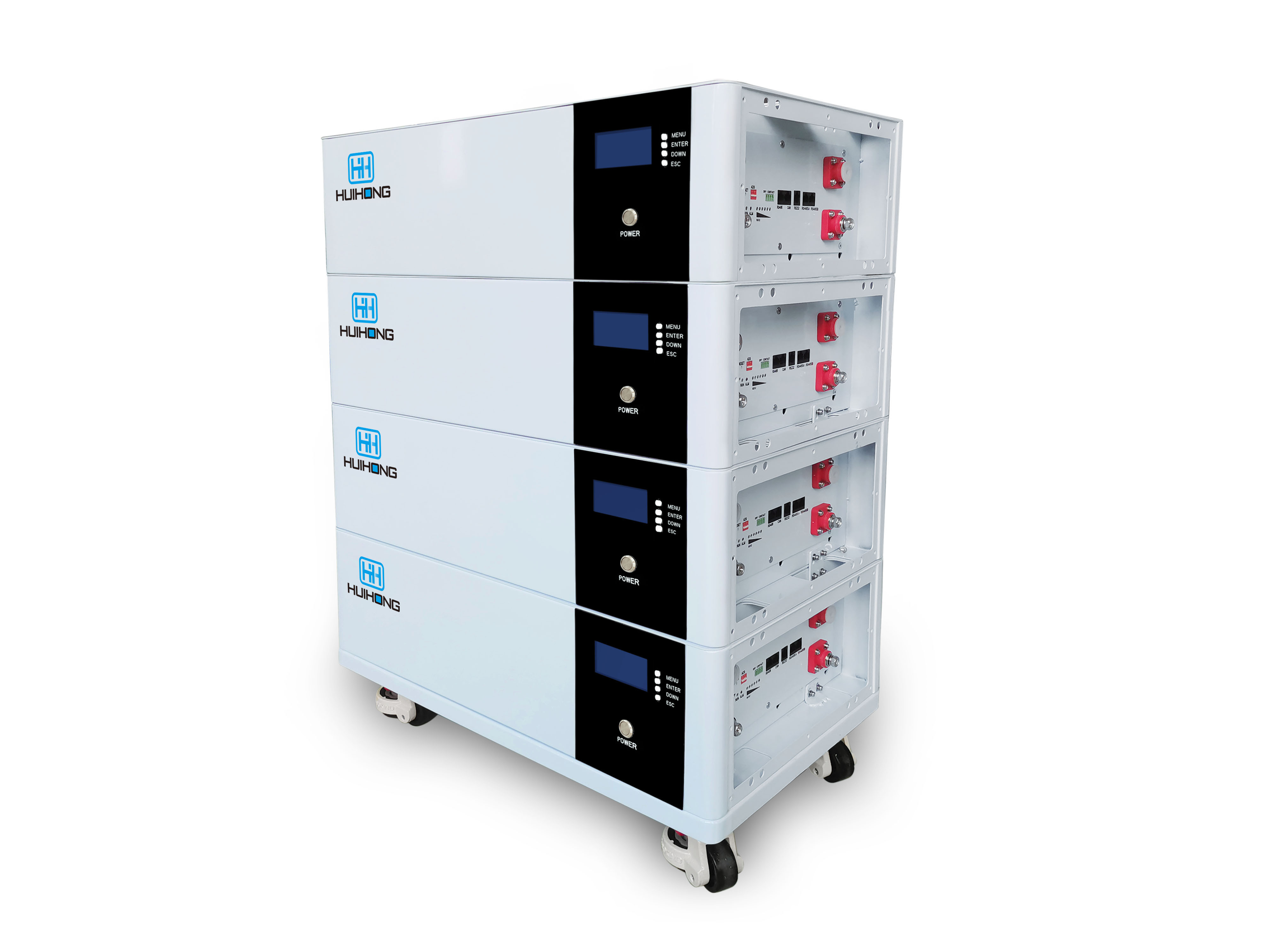

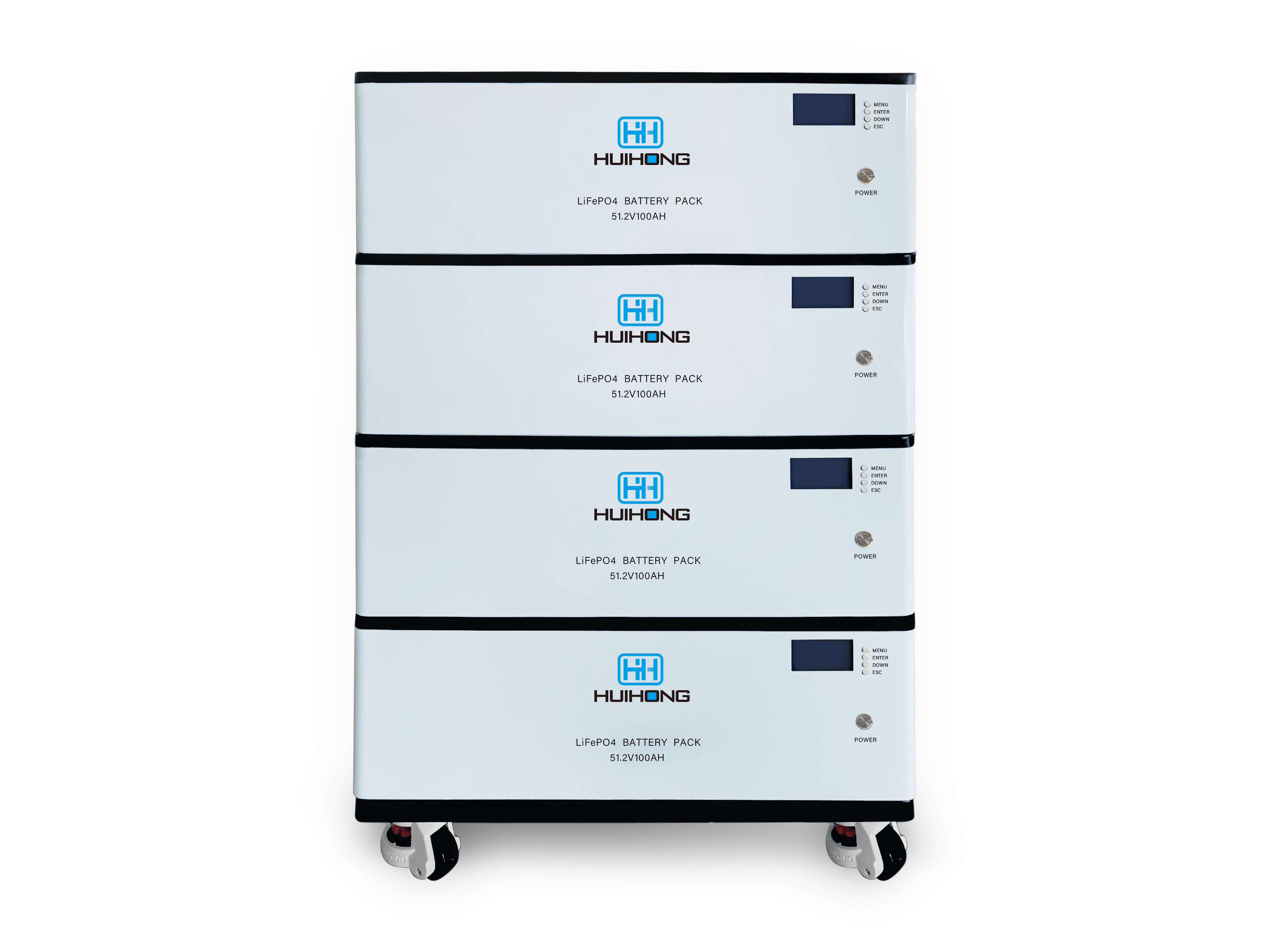

Stacked home energy storage series


Applications:

It is widely used in various application scenarios such as residential energy storage systems, shops, and offices

Features


★Battery module: Modular stacking design, the number of modules can be selected according to the demand, which can be quickly expanded and easy to install
★System Base: Removable base. Equipped with heavy-duty universal brake wheels and directional adjustment wheels. Flexible. Universal brake wheel braking can be temporarily fixed, and directional adjusting wheel adjusting screw can be better positioned and fixed
★Inverter: Optional part. This equipment can be configured according to the actual needs of the multi-function inverter charger that integrates the functions of inverter, MPPT solar charger and battery charger. It has a wide PV input range, when the energy is sufficient, it can not be connected to the battery load, and has the advantages of high power density, small size, simple operation, high efficiency of the whole machine, and small no-load loss.

  • <
  • >

Stacked home energy storage series
Type Lithium Iron Phosphate/Specification Parameters
Battery Model Number / Superposition and Paralleling 51.2V-100AH / One Pc 51.2V-200AH / Two Pcs 51.2V-300AH / Three Pcs 51.2V-400AH / Four Pcs
Nominal voltage 51.2V 51.2V 51.2V 51.2V
Nominal Capacity 100AH 200AH 300AH 400AH
Energy 5.12KWH 10.24KWH 15.36KWH 20.48KWH
Charge Cut-off Voltage 58.5V
Discharge Cut-off Voltage 41.6V
Charge current 100A
Discharge current 100A The current load will increase with the number of parallel machines
Communication Interface RS485+CAN+RS232
Communication protocol Compatible with many mainstream inverter protocols on the market
Overlay Dimension(L*W*H) 630*450*405mm 630*450*610mm 630*450*815mm 630*450*1020mm
Charging operating temperature 0℃~45℃
Discharging operating temperature -20℃~55℃
Storage temperature -10℃~45℃ Charge and discharge every  other month
Net Weight 45KG 90KG 135KG 180KG
